Key features

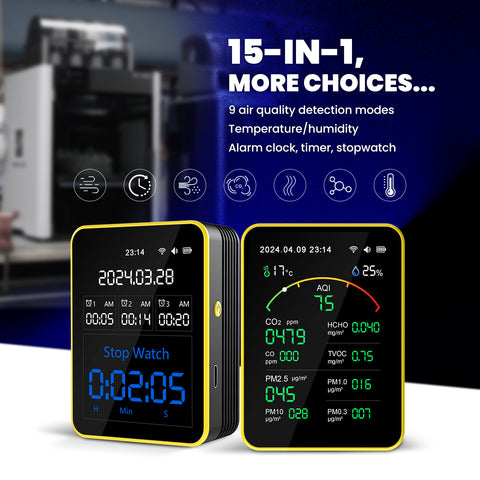

All-in-one (15-in-1)
View multiple metrics at once (commonly PM2.5 / PM1.0 / PM0.3 counts, TVOC, temperature & humidity, etc.) on a single device.
Note: visible items may vary by batch/firmware—see the specs table on this page.
Particles + gases, side by side
Track fine particles (PM1.0/PM0.3) together with odor-related TVOC—ideal for 3D printing “before / during / after” comparisons.
Trends with peaks
Real-time/minute curves with peak markers—perfect for Filter ON vs OFF demos.
Color bands for quick decisions
Built-in green/yellow/orange/red reference bands (user-adjustable) for easy interpretation.
Portable & simple
Tabletop or handheld. Power on and measure. Clear display, minimal buttons.

Why it fits 3D printing

PLA/PETG: watch PM2.5/PM1.0 and TVOC drop in real time.
ABS/ASA: focus on TVOC (odor) and PM0.3 (fine particle trend); compare during print and post-print purge.
Nylon/PA: track TVOC along with temperature & humidity.

With Mintion Filtration V1:

During PLA/PETG: door open + near-source capture → PM/TVOC curves fall immediately.
During ABS/ASA: low-flow recirculation to keep chamber warm → lower peaks & steadier steady-state; after the job, high-flow purge → back to low levels in minutes.

Probe placement: mid-upper area on the door-opposite side—avoid direct jets.
Baseline: seal for 10–15 min before each test; express PM0.3 as ×baseline for clarity.
Showcase: plot No-Filter vs Filter-ON curves; annotate peak drop / purge time.
Safety: keep temperature/smoke alerts for long prints.

Makerspaces, studios, home/office users, schools & labs.

MT15 device ×1, USB-C cable ×1, Quick start card ×1.

Displayed items: PM2.5 / PM1.0 / PM0.3 (counts) / TVOC / Temp / RH / … (up to 15)
Sampling: real-time refresh with minute-level smoothing

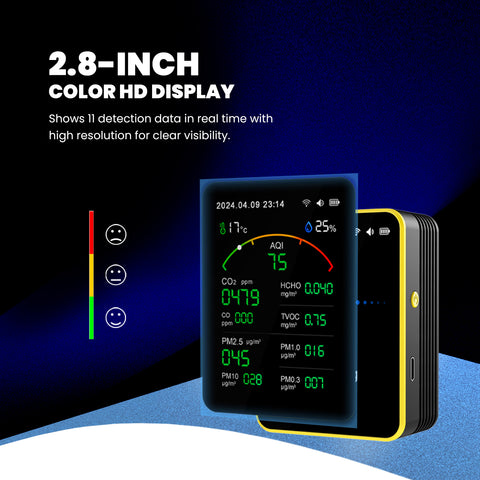

Display: color screen with curves + numerics
Power: USB-C charging / continuous power
Alerts: color bands & peak markers (user-set thresholds)
Note: TVOC is a total indicator (not compound-specific). PM0.3 counters exclude <0.3 µm nanoparticles—use it as a trend/leak indicator.
