1. What’s Actually in 3D Printing “Smell”?

When you run an FDM printer, especially in an enclosed chamber, you don’t just get a warm plastic smell. You will get:

Ultrafine particles (UFPs) – typically tens of nanometres;

VOCs (volatile organic compounds) – different for different plastics.

Very roughly:

PLA Filament: mainly lactide and some aldehydes;

PETG Filament: aldehydes and other VOCs;

ABS/ASA: styrene and related compounds, often the strongest odor;

Nylon: compounds such as caprolactam.

Higher extrusion temperatures and “engineering” filaments tend to emit more of both.

Most users do not have industrial ventilation or a lab. Their printers live in bedrooms, home offices or shared workspaces—places where people also work and rest for hours. In those spaces, controlling emissions becomes less of a “nice to have” and more of a comfort and exposure issue.

2. Real-World Limitation: Not Everyone Can Vent Outside

The ideal solution from an industrial point of view is: fully enclosed printer + strong filter + duct straight outdoors.

At home or in a small studio, that often fails immediately:

you can’t drill a hole through an apartment wall;

keeping a window wide open all winter/summer kills your heating or cooling;

a random room air purifier isn’t optimized for concentrated printer exhaust or styrene-heavy VOCs.

In short: you need something purpose-built for 3D printer enclosures, not a generic living-room purifier.

3. V1’s Core: Filter Stack + Fan + 100 mm Duct + Adapters

The Mintion 3D Printer Filtration System V1 is built around three elements:

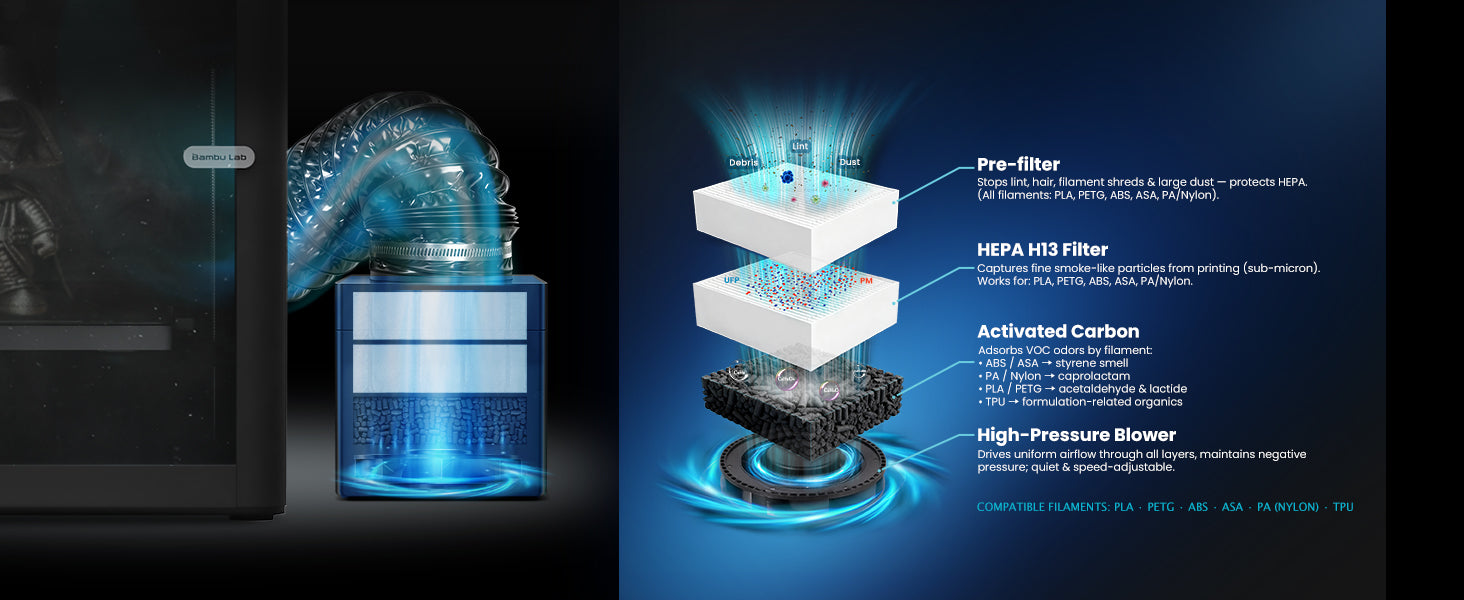

3.1 Three-Stage Filter Stack

Pre-filter: catches dust, fibres and larger particles.

HEPA H13: targets fine and ultrafine particles.

Deep activated carbon bed: adsorbs VOCs and reduces odors, especially from ABS/ASA and Nylon.

3.2 Centrifugal Fan with Controlled Airflow

Sized to maintain meaningful flow even after multiple filter stages;

Optimised to move air from the enclosure, through the filter stack and out via ducting, not just stir the room air.

3.3 100 mm Standard Duct + Printer Adapters

Uses 100 mm hose to connect directly to printer outlet ports, default for Bambu P1S/X1C;

Includes adapters for popular enclosed machines (e.g. Flashforge, Creality, Anycubic, Elegoo, Prusa...) and can be extended to other printers via printed connectors.

Reach this page to check Compatible Connectors for 3D Printer Filtration System V1

Instead of trying to clean the entire room volume, V1 captures emissions right at the source, as they leave the enclosure.

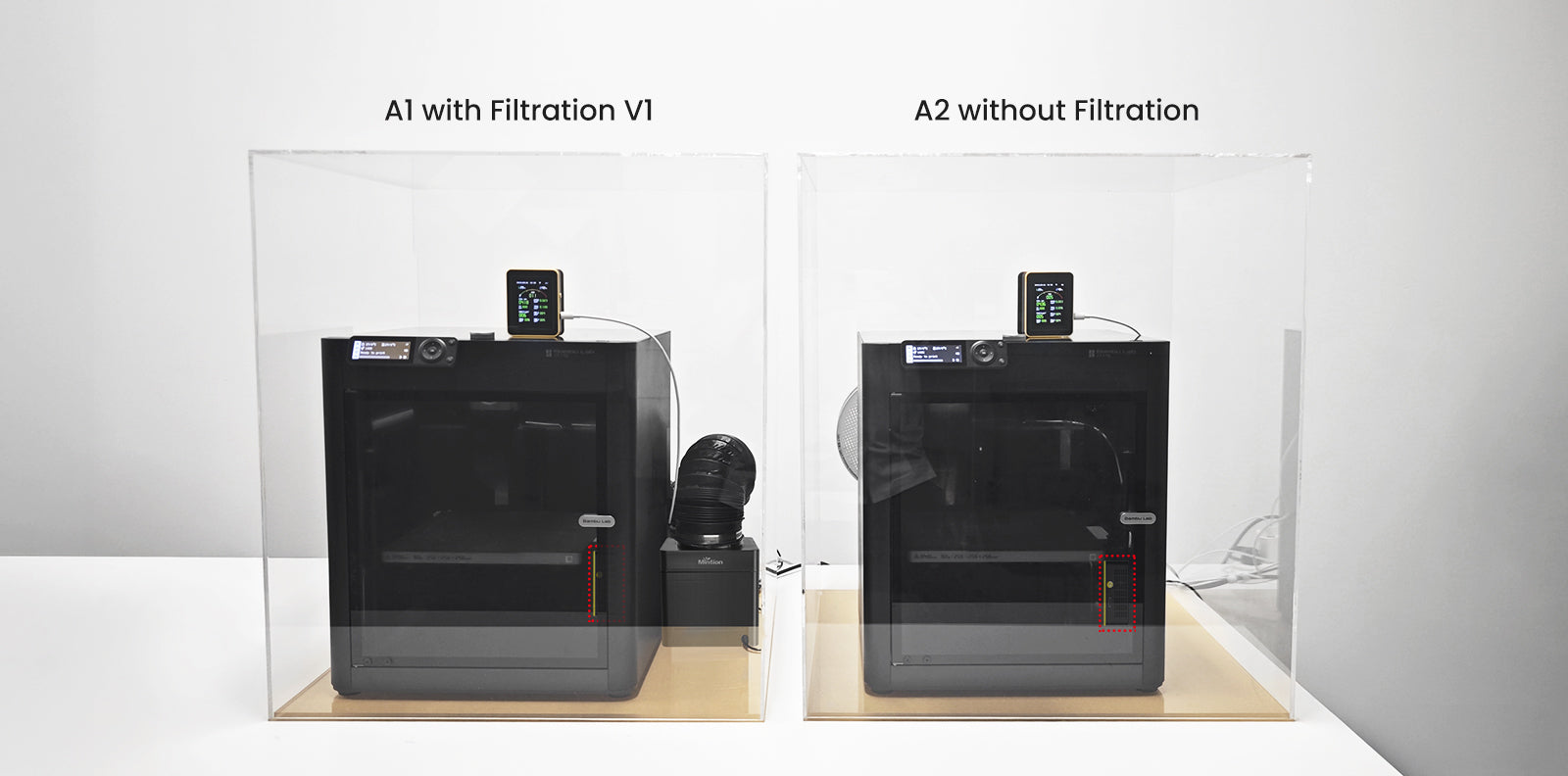

4. Data, Not Guesswork: Before/After Testing

To move beyond “it feels better”, Mintion uses the Air Quality Detector MT15 air quality monitor to compare:

same printer, same filament, same g-code;

one run without V1, one run with V1;

measurement points inside and outside the enclosure.

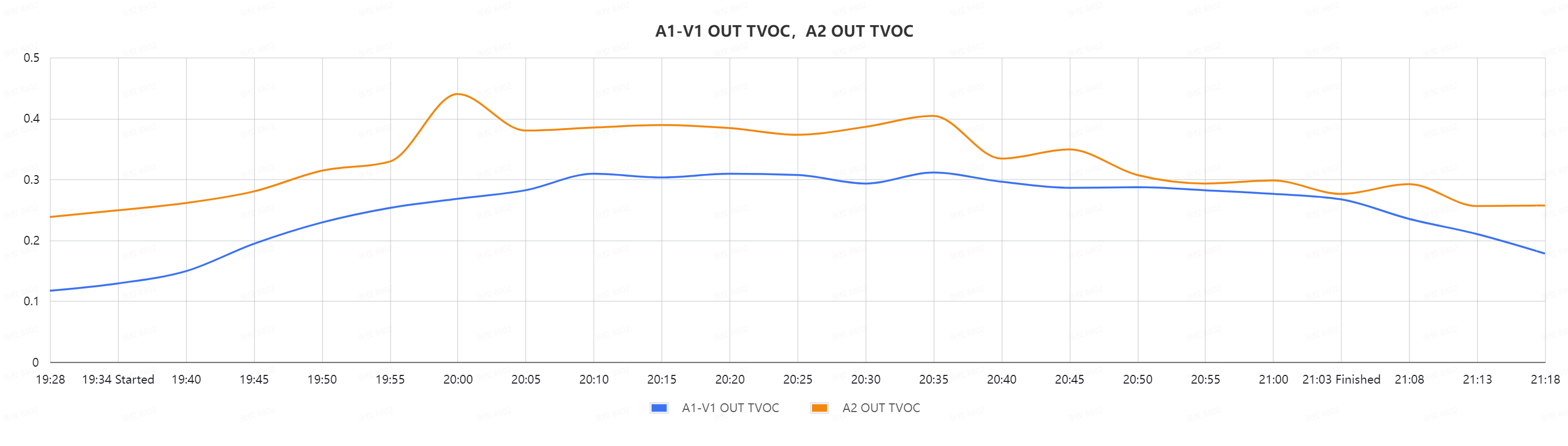

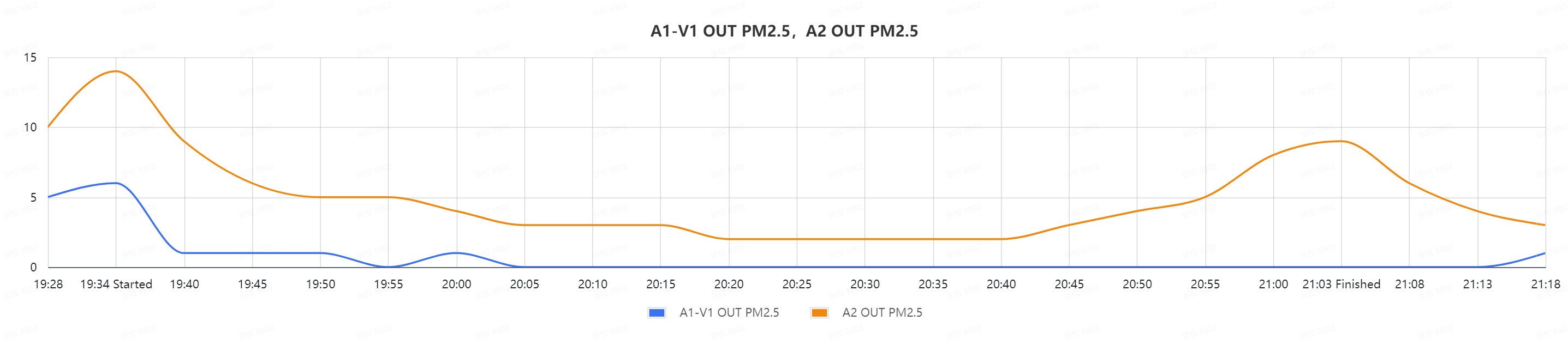

The general pattern you’ll see:

particle readings (PM1.0/PM2.5) rise slower and peak lower with V1 running;

VOC curves, especially for ABS/ASA, have lower peaks and shorter “tails”;

The key message: V1 doesn’t promise lab-grade air, but it makes emissions measurably more controlled and predictable.

5. Practical Use Tips by Filament Type

You can get more out of the system by treating different materials differently.

5.1 ABS / ASA / Nylon

High temperature + more VOC:

During print:

run V1 at a moderate level to balance enclosure temperature and emission capture;

After print:

keep the chamber closed and run V1 at 100% speed for 10 minutes .

5.2 PLA / PETG

More particle-focused, lower VOC:

During print:

run at medium power to continuously remove particles and minor VOCs;

After print:

high-speed  to smooth out the end-of-print spike when the fan or enclosure opens.

Filter lifetime will depend on how many hours you print and which materials you use. The simple rule: if odor control worsens or airflow drops significantly, it’s time to replace the cartridge.

6. Why Not “Just Use a Regular Air Purifier”?

This is where a bit of contrarian thinking helps. On the surface, a living-room purifier seems cheaper and more flexible. But consider:

Capture location

Room purifiers draw in diluted air from across the room.

V1 pulls directly from the printer enclosure where concentrations are highest.

Filter design

Many consumer purifiers use thinner carbon layers optimised for everyday smells and quick room airflow.

V1 uses a thicker carbon bed paired with HEPA H13, tuned for continuous, localised exhaust.

Practical constraints

You may not want a big tower purifier next to every printer, especially in a farm or workshop.

V1 uses a thicker carbon bed paired with HEPA H13, tuned for continuous, localised exhaust.

So the real trade-off isn’t “V1 vs purifier”. It’s “source-level control + optional room purifier” vs “room purifier only”.

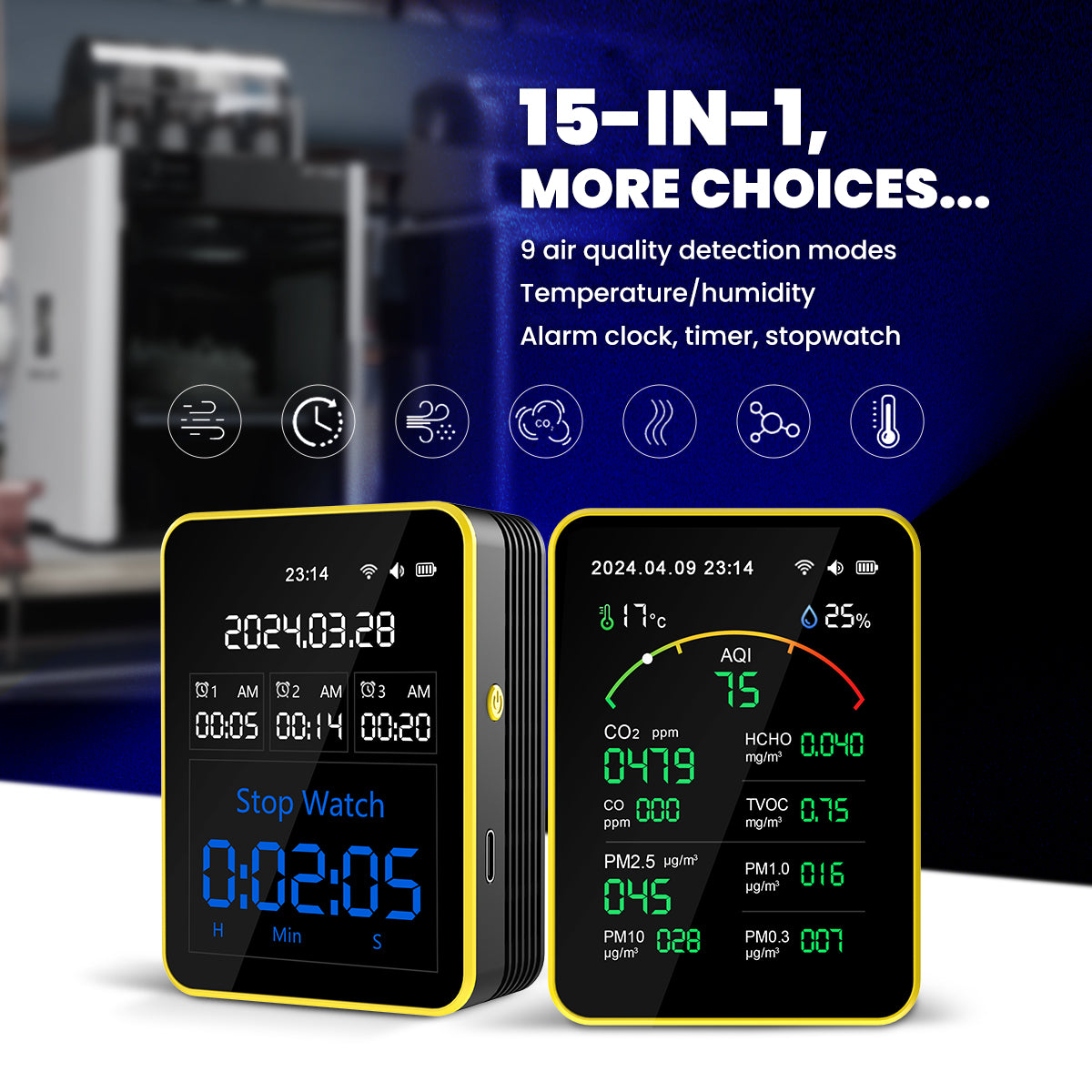

7. V1 + MT15: Making Air Quality Visible

Paired with the MT15 monitor, V1 becomes part of a simple control loop:

MT15 shows baseline room levels.

You start a print and see particle/VOC levels rise.

With V1 connected, you can see how quickly levels stabilise and how fast they decay after the job.

You adjust fan speed and post-print purge time based on actual curves, not guesswork.

This combination is especially valuable for:

families with a printer in a shared room;

schools and makerspaces that need to demonstrate they’re taking emissions seriously;

With V1 connected, you can see how quickly levels stabilise and how fast they decay after the job.

$74.99

$89.99

Add to cart

Out Of Stock

$59.99

$69.99

Add to cart

Out Of Stock

8. Who Benefits Most from V1?

V1 is not a medical device and shouldn’t be treated as one. It is a practical way to reduce and manage exposure when:

your enclosed printer lives in a bedroom, office or small studio;

you plan to print ABS/ASA/Nylon or run long prints frequently;

drilling through walls or building complex ducting isn’t an option;

you’d rather have a repeatable, measurable setup than rely on “open a window and hope for the best”.

As desktop 3D printers move from garages into everyday living spaces, the question is shifting from “Can it print?” to “Can we live with it running all day?”

The 3D Printer Filtration System V1 is Mintion’s answer to that second question: a source-focused, enclosure-friendly filter that fits how people actually use their printers at home and in small labs.
