Mintion New Lasercam | Laser Engraver Camera | LightBurn Camera | Wireless Bridge | Enclosure Image Trace
Regular price $119.99 $129.99 | Save $10.00 (7% off)
Estimated delivery between and .
PRODUCT DETAILS
The new Mintion Lasercam has optimized its positioning bracket, lens and some functions, making it suitable for the vast majority of laser engraver enclosures for image trace. In addition to being compatible with mainstream brands of diode laser engravers such as Creality Falcon 2, xTool D1 Pro, Atomstack A10 Pro, and Sculpfun S9, etc.. The new Mintion laser camera also supports most other diode laser engravers (such as xTool, Atomstack, Sculpfun, Twotree, Ortur, Creality, NEJE, Longer, etc.), and complies with the GRBL protocol with LightBurn and LaserGRBL.
- Plug & Play, Easy-to-use.
- Aluminum frame bracket, fit for positioning / trace image in enclosure.
- LightBurn wireless bridge, wireless connectivity for data transmission and video streaming is supported between LightBurn and laser engraver.
- Remote monitor & control your laser engraver/cutter.
- Auto-generate timelapse videos for engraving/cutting job.
- Offline engraving/cutting to free your computer and protect your eyes.
- Manual focus of camera lens for a better view.
- BeagleEngraver App to remote access from anytime anywhere.
- Support PC browser to monitor & control the laser engraver/cutter .
- Normal Record & Playback to save evidence if there's any incident.
- 1080P resolution for video streaming .
- Dual WiFi Bands of 2.4GHz & 5GHz for wireless connection.
Mintion New Lasercam | Laser Engraver Camera | LightBurn Camera | Wireless Bridge | Enclosure Image Trace
Shipping Policy
Shipping Costs
We distribute worldwide via 4PX, EMS, DHL, FedEx, UPS, USPS, and particular freight companies for unique items. We offer Free Shipping when the order is equal to or over $20.
Order Confirmation & Shipment
As soon as you place your order, you will receive an order confirmation e-mail. This means that we have received your order in our system and pre-authorized your credit card for the purchase. As soon as we receive your order, we will arrange the shipment and send you the tracking information within 24 hours, then you will receive an email with the tracking number. If you do not receive tracking information from us within three business days of your order, feel free to follow up with us at shop@mintion.net.
Shipping Duration
All the products on our shop has shown the location to ship from, and the following duration days are for reference:
| Warehouse | North American | Europe | Other Areas |
| China | 5-10 working days | 5-12 working days | 7-20 working days |
| US | 3-7 working days | - | - |
| European | - | 3-10 working days |
Title and Risk of Loss
Title to all Products supplied hereunder shall pass to Customer when delivered to the carrier and thereafter, except as otherwise explicitly provided herein, all risk of loss and/or damage to any Products ordered hereunder shall be borne by Customer.
Inspection and Claims for Damage in Transit
Customer shall carefully examine all deliveries of Products made hereunder and within five (5) days of the receipt notify our shop of any alleged error, shortage, defect, or non-conformity of any such Products. Any failure by Customer to examine and report shall constitute a waiver of any claim or right of Customer against our shop arising hereunder or by law concerning any such error, shortage, defect, or non-conformity reasonably discoverable by such examination Customer shall make any claims by Customer for damage or loss in transistor against the carrier.
LightBurn Wireless Bridge
Same as LightBurn bridge, with the latest firmware(V1.2.7+) for the camera and LightBurn(V1.4.05+), the laser engraver can be connected wirelessly with LightBurn. Also wireless connectivity for data transmission and video streaming is supported.
NOTE: We are not suggesting that users leave the laser engraver unattended. The purpose of the wireless connection with LightBurn is to avoid exposure to the smoke generated during plywood cutting and the toxic fumes from acrylic cutting or engraving, even when using an enclosure. Additionally, camera monitoring ensures that your eyes are not directly exposed to the laser light.
Stay Away from Laser to Protect your eyes and free yourself!
Remote Monitor & Control via PC or Phone, view and manage your engraving process remotely, freeing you to multitask and safeguarding your eyes from prolonged laser exposure and exposure to harmful/bad smelling gases. (Note: The normal usb camera does not support remote view and control)

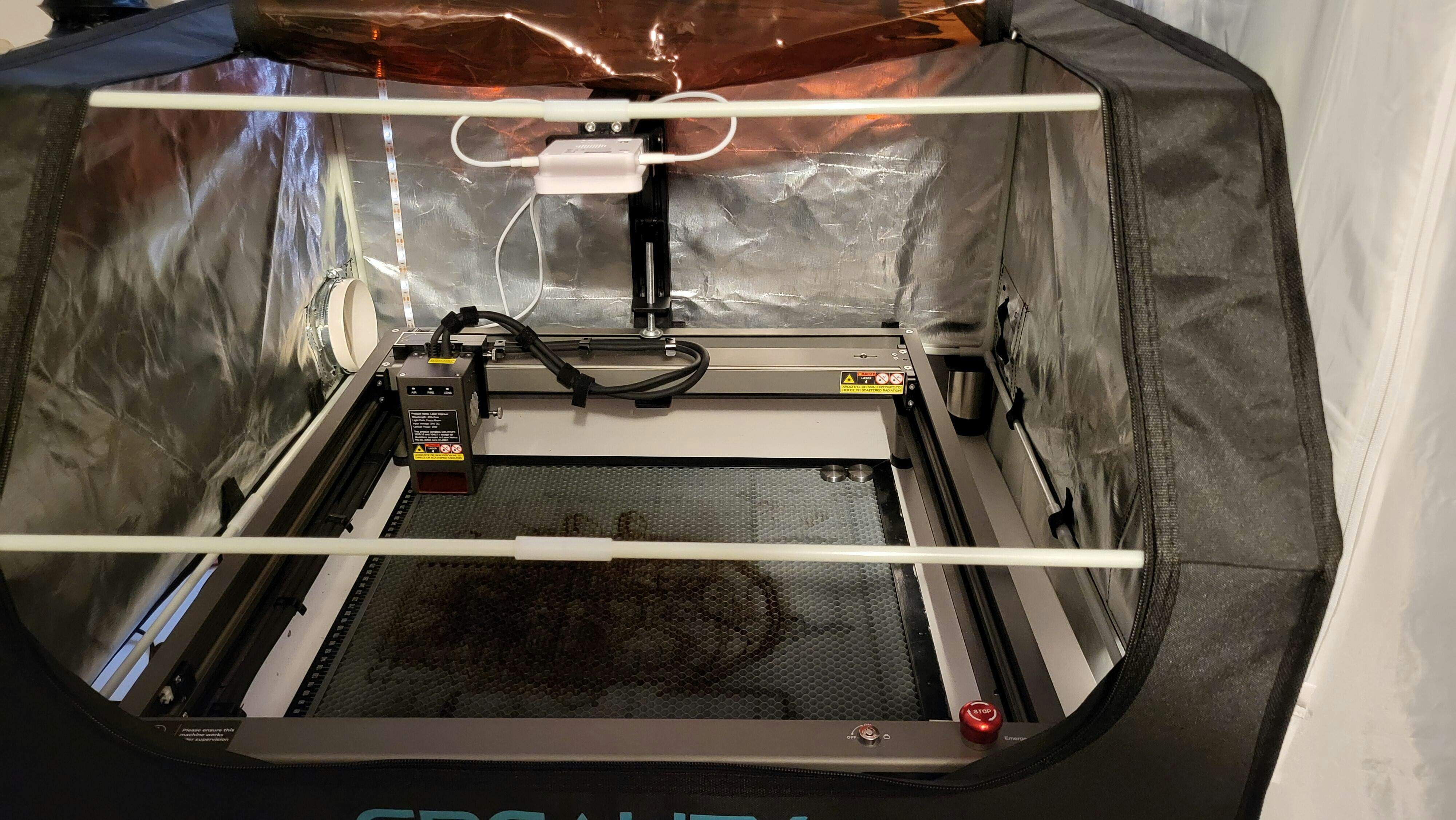

Work in Enclosure
With the new bracket (adjustable aluminum frame bracket), the new mintion lasercam can work in enclosure for image tracking/positioning to engraving/cutting.
High Precision Engraving/Cutting
Mintion laser camera can achieve high-precision calibration and positioning in lightburn, with an error value within 1mm. (eg: 0.05-0.2 calibration scores & fine alignment on Lightburn to achieve- precision laser engraving on 10*10 1mm Grid)
Batch Engraving/Cutting
Mintion laser camera can work as lightburn camera to batch engraving/cutting after positioning, improve usage efficiency.
Image Trace
New Mintion Lasercam can easily extract the contours of simple patterns as vector lines through image tracking, and you can use these lines for engraving or cutting, even in enclosure.
Remote Monitor the Ongoing Project
With BeagleEngrave APP, you can easily observe the job ongoing and digital zoom the video to check the details
Different Between New & Old
Beyond a Camera for Multiple Functions
The new mition laser camera is specially designed for laser engraver/laser cutter, not just as a normal USB camera
Create Time-lapse Video with Fun
Three different timelapse video modes to generate the video automatically
Clean Timelapse Video
The laser module will be moved aside every 5 seconds (default setting) automatically to create a timelapse video like the art job self-growing.
Normal Timelapse Video
The camera will capture the image each 5 seconds (default setting), but won't move the laser module. The laser module will be inside the video.
Timer Timelapse Video
This mode allows to make timelapse video even without connecting to the engraver. You can set the timing to capture as a camera to make timelapse video.
Laser Engraver/Cutter Compatible List
Lasercam camera compatible with major popular engravers in the market and the list will be updated regularly.
ATOMSTACK
A5 M30 / A5 M40 / A5 M50 / A5 M50 Pro / A5 Pro / A5 Pro+ / A10 Pro / A20 Pro / A30 Pro / A40 Pro / P9 M40 / P9 M50 / P7 M30 / P7 M40 / P9 M50 / S10 PRO / S20 Pro / S30 Pro / S40 Pro / X7 / X7 Pro / X20 Pro / X30 Pro / X40 Pro
xTool
D1 / D1 Pro
Aufero
AL1 / AL2
Creality
Falcon / Falcon 2
Comgrow
Z1
Elegoo
Phecda
iKier
K1 Pro / K1 Pro Max / K1 Ultra
Longer
RAY5 / B1
Ortur
LM2 / LM2 S2 / LM2 Pro S2 / LM3 / LM3 LE
SCULPFUN
S6 / S6 Pro / S9 / S10 / S30 / S30 Pro / S30 Pro Max / S30 Ultra
TWOTREE
TTS / TS2 / TS3
Software List
The Lasercam complies with RGBL protocol and works flawlessly with the gcode files
Compatible Software List
- LightBurn
- LaserGRBL
On Testing Software List
- xTool Creative Space
Specification
Model
Lasercam
Video Compression
H.264/MJPEG
Video Resolution
1080P
View Angle
170°(D)
Night Version
Black & White; Color Night Version
Frame Rate
Up to 25fps
Auto Time-lapse Video
Clean/Normal/Timer Mode
WiFi Connectivity
Supports 2.4GHz / 5GHz
Compatibility
GRBL protocol engraver and LightBurn & LaserGRBL
Connect to Computer
USB Type C Cable
Connect to Engraver
USB Cable
Files Storage
Micro SD Card (Default 32 GB)
Upload Gcode File
Yes, .gcode & .nc files
Power Source
DC5V 1A
Brackets
Adjustable Aluminum Frame Bracket
Camera Box Size
400*295*75cm
Gross Weight
1.85KG
Why BeagleEngrave?
The Beagle
Excellence Watchdog
The Beagle is an excellent watchdog with a friendly personality; they have reliable guarding and territorial instincts and are highly protective of the family members, making them a good choice for a watchdog.
The BeagleEngrave
Your Engraver Sentinel
We envision our Lasercam camera as a reliable companion for laser engraving/cutting, just like a loyal beagle. It offers remote monitoring and controlling, acting as a vigilant guardian throughout the process, including fire detection. Seamlessly integrated with LightBurn software, it ensures precise positioning, enhancing the engraving experience.
This versatile camera also boasts a one-button auto-generation for time-lapse videos, adding joy and entertainment to the engraving, much like how beagles always find ways to bring laughter and delight.
Customer Reviews
La caméra sur la machine laser facilite vraiment le positionnement des pièces à découper sur le matériau et réduit considérablement les chutes à jeter.
Manque juste une notice en français pour l installation car tout le monde ne maîtrise pas forcément l anglais.
Je trouve que ça apporte vraiment un plus.
Utilisation sur un falcon2.
"I already had the camera for 3D printing, and now I have the camera for lasers! It's easy to use, allowing for effortless time-lapse videos and the ability to monitor the progress of the engraving on phone. It works with most laser engravers. Awesome!"
I've been wanting to record the engraving process for a while now. This appears to be an excrement setup for doing just that. The assembly process is simple and straightforward. There is an easy to follow instruction booklet included. I'm really looking forward to using this for some upcoming projects I'll be working on. If I run into any issues, I'll update this review.
The assembling and installation of the camera is easy. The camera is precise for positioning when it is aligned. Controlling the laser engraver (in my case the Ikier K1 Pro Max) using the mobile or personal computer is easy and great. As an improvement for Ikier engraver users, extend the length of the horizontal 2040 aluminum linear rail a little bit or redesign it as an extendable rail. That will help in easing the reach of the coverage area. Another suggestion: as ikier frame rail is not flat, including a plastic piece like the wooden piece I have added will be helpful.
Overall, the camera is a great addition to my workshop.
Der Aufbau und die Installation am Laser sind sehr gut und vor allem stabil. Die doppelte Verschraubung sorgt dafür das sich nichts verdreht. Lediglich die Rändelschraube zum schwenken der Kamera müsste etwas stärker ausgelegt werden da ich eine Einhausung (Plane für Absaugung) verwende. Durch die Bauart und der Höhe bedingt liegt diese Plane (Sichtfenster) manchmal direkt auf der Kamera auf und drückt die Kamera (fixiert mit Rändelschraube) etwas nach unten, dadurch entsteht natürlich Versatz.
Eigentlich ist die Kamera wenn sie ausgerichtet ist sehr genau für die Positionierung, jedoch wenn man an sehr feine (werden nicht sichtbar) und auch kleine Gravuren etwas hinzufügen möchte, ist es durch die teilweise grobe Pixelung schwierig passend anzuschließen.
Als Verbesserung könnte man evtl. eine zuschaltbare LED Beleuchtung hinzufügen.
Alles in allem OK
Excellent produit fonctionne à merveille
Die Einrichtung war super beschrieben und ging auch sehr einfach von statten.
In Lightburn funktioniert die Kamera.
Wenn ein Job gesendet wird, wird dieser auch ausgeführt. Allerdings gibt es keine Rückmeldung und der Job lässt sich auch nicht mehr stoppen.
Wenn ein Rahmen abgefahren wird (kontinuierlich), kann man das nicht mehr stoppen und es wird immer weiter der Rahmen abgefahren.
ansonsten. alles gut.
Die Kamera dürfte ein etwas schärferes Bild haben. Das kann aber auch an meinen Lichtverhältnissen liegen.
